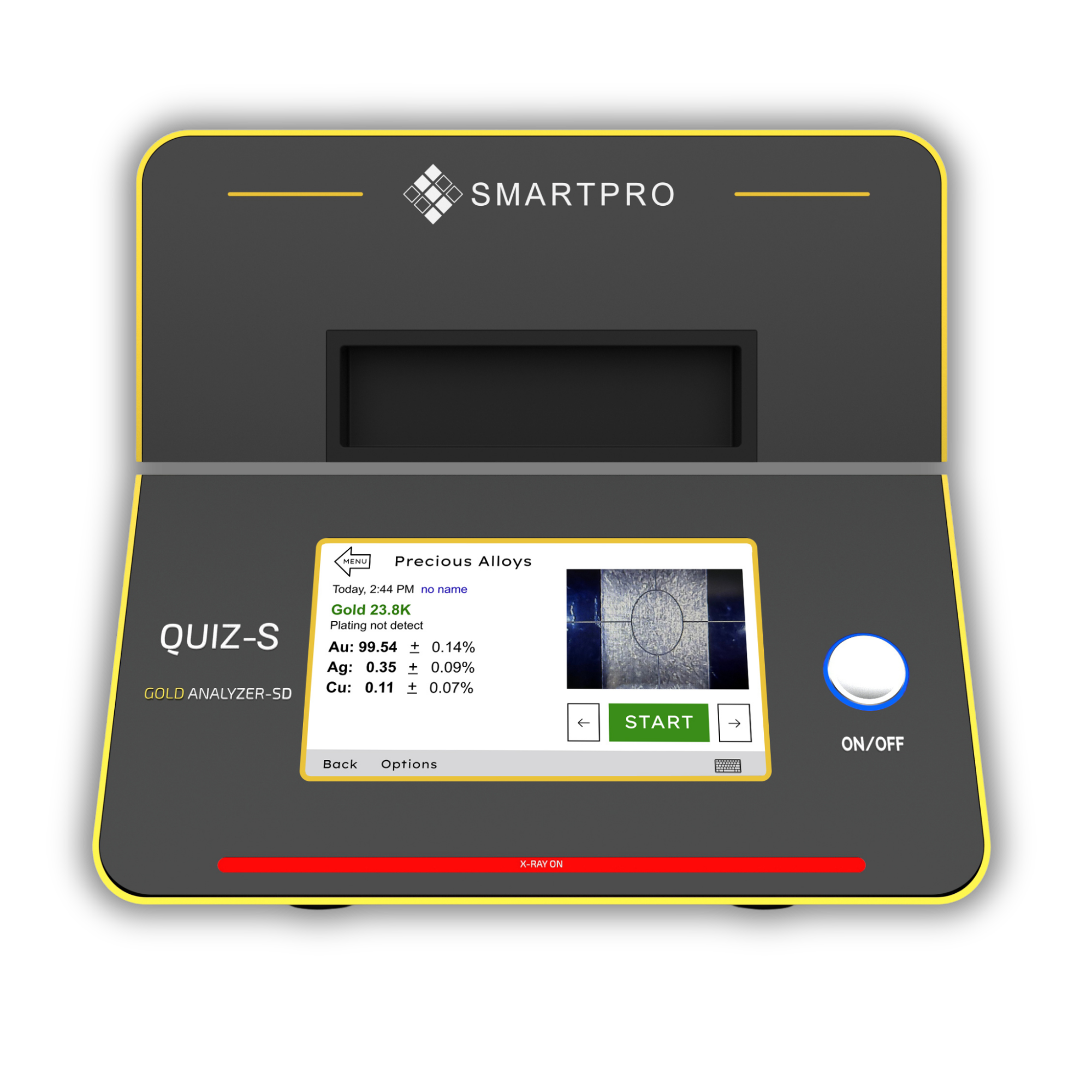

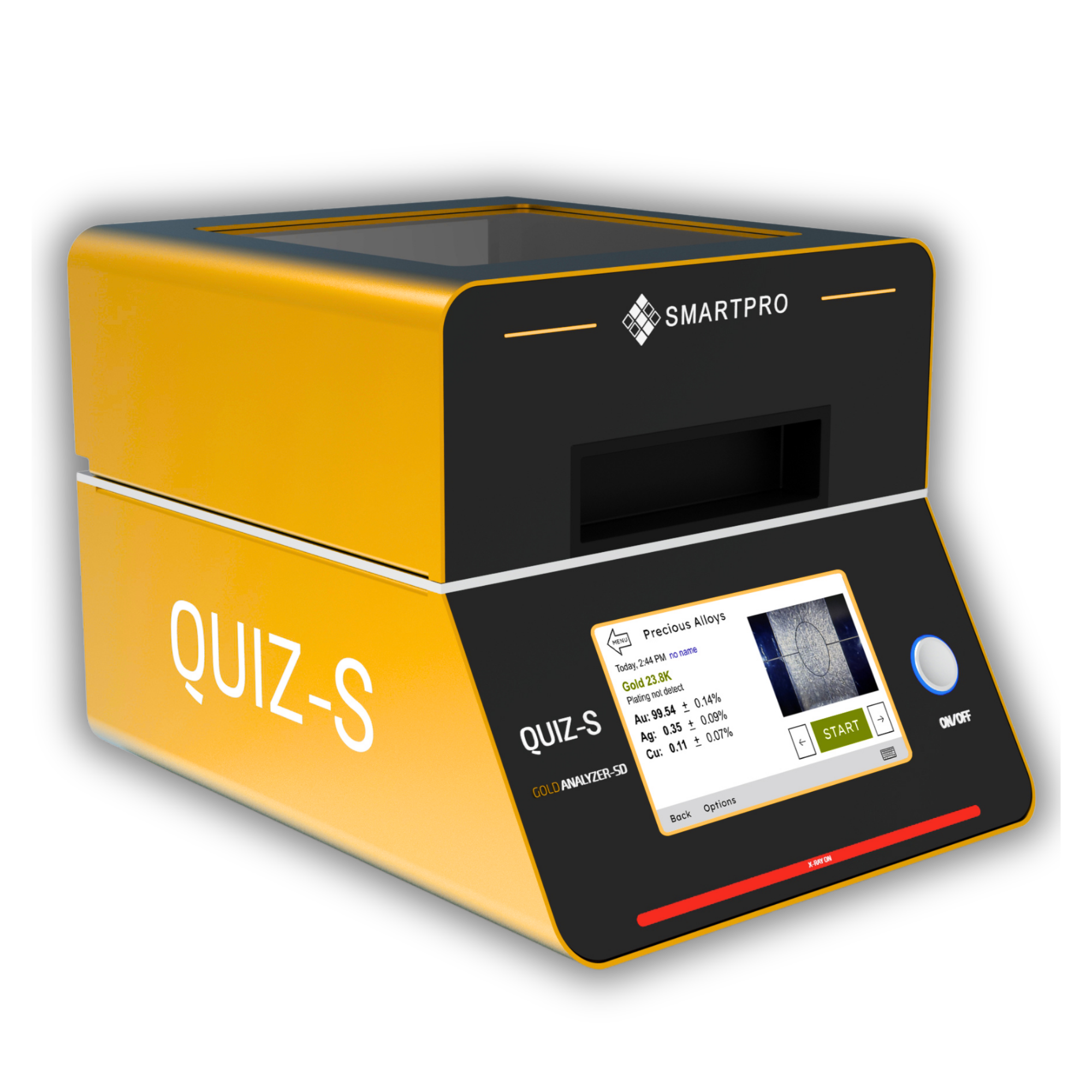

Quiz-S Precious Metal Analayzer
- Normaler Preis
- $20,000
- Sonderpreis
-
- $20,000
- Normaler Preis
- Einzelpreis
- pro
Performance
- Full metal composition results in just 10 to 60 seconds
- Gold karat classification with pinpoint accuracy
- Typical precious metal accuracy below 0.10 percent depending on application
- Repeatability for Gold 585° at ±0.03 percent typical
- Detectable element range from Magnesium to Uranium
Advanced Technology
- Powered by SmartPro QUIZ XRF processing algorithms
- 40 kV high stability microfocus X ray source made in USA
- Detector options: High resolution SDD or SiPIN
- Fixed 1 mm precision collimated analysis spot
- Integrated HD camera with real time targeting alignment
- Dynamic plating detection filter for layered metals
Safety & Compliance
- Certified radiation level below 1 µSv per hour
- Automatic lid interlock with auto shutdown protection
- Fully shielded analysis chamber

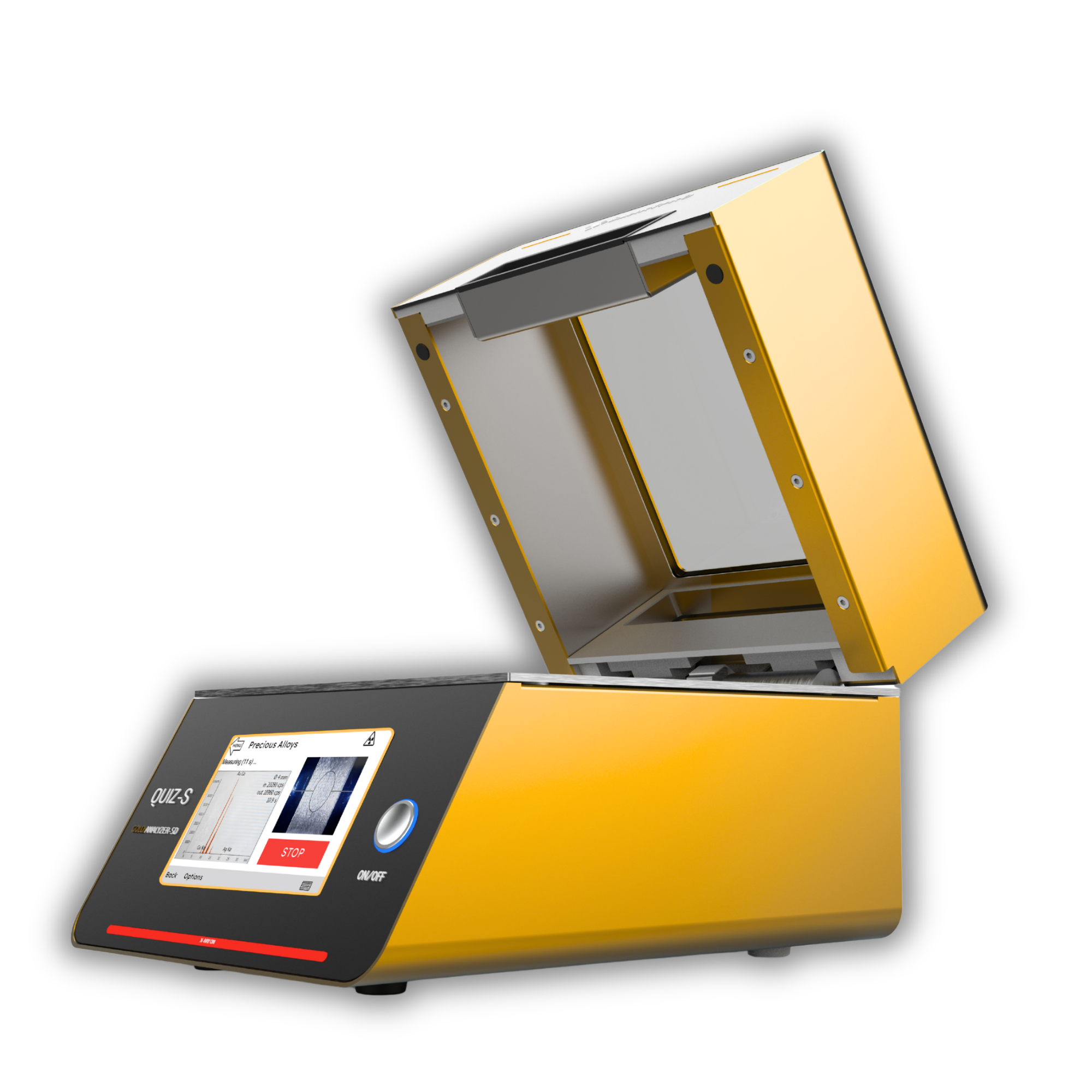

- Transparent safety lid for full customer visibility during testing
Design & Usability
- 5 inch high resolution touchscreen with intuitive workflow

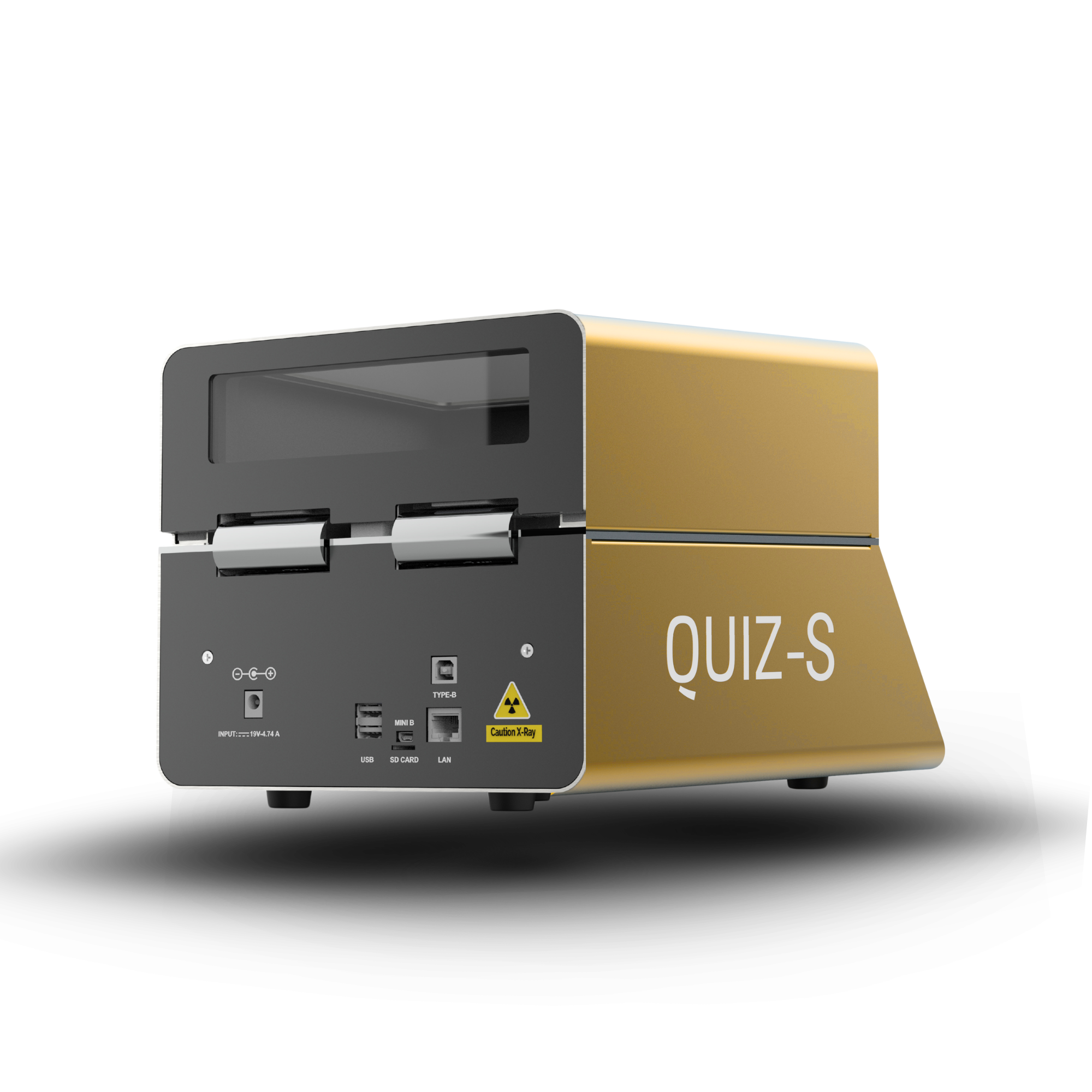

- USB, MicroSD, Ethernet LAN and WiFi connectivity
- Compact, elegant, space saving design for modern retail counters
- Suitable for jewelers, manufacturers, refiners and inspection authorities
Dimensions and Weight
- Length: 272 mm
- Width: 210 mm
- Height: 198 mm
- Weight: 5.5 Kg
Included Accessories
- SmartPro Quiz-S unit
- Power Adapter
- Calibration Metal
- User manual book
- Warranty card
Technical Specifications
- Ventilation Requirements: Do not obstruct the ventilation holes
- X-ray Source: 40 kV microfocus tube, long-life design
Standard High-resolution SDD detector, 135–145 eV at Mn Kα, Active area 25 mm²
Optional: Si-PIN diode detector, Active area 6 mm²
SDD detectable 81 Elements From Mg (12) to U (92)
Si-Pin detectable 71 Elements From Ti (22) to U (92)
Typical Accuracy: Precious metals & jewelry <0.10% (application/method dependent)
Collimator: Fixed 1 mm analysis spot
Camera System: HD live-view targeting camera with LED illumination
Analysis Chamber: Protective X-ray shielded chamber with sample tray
Safety System: Lid interlock auto-shutdown; radiation level < 1 µSv/h
Operating system Embedded: Windows CE | PC (optional): Windows XP / Vista / 7 / 8
Connectivity & I/O: USB, MicroSD, Ethernet (LAN), Wi-Fi
User Interface: 5-inch High-resolution touchscreen
Power; 100–240 V AC, 50/60 Hz
Dimensions Unit: 210 mm x 272 mm x 198 mm
Dimensions Chamber: 160 mm x 174 mm x 74 mm
Net Weight: Quiz S= 5.5 kg
